Camera Link is one of the standard connection specifications designed to transmit high-quality image data from high-efficiency industrial cameras to a PC-based image acquisition device without any loss. The standard connection of Camera Link supports transmission at distances of ten meters or less. For longer distances, the signal between the two devices must be amplified.

The FCL-30T/R supports Base/Medium/Full configurations (including 10 Taps) and enables long-distance transmission of image signals via optical fiber, along with RS232 control signals and CC1~4 trigger signals. These signals are transmitted to the PC. This product supports transmission distances of up to 2 km, and by replacing the optical module, even longer distances can be achieved.
 Features of FOR-30TR
 Fully supports the Camera Link interface (Area/Line Scan).
 Supports Base/Medium/ Full (including 10 Taps) configurations
(CC1~4, RS232, 10 Ports (Taps), LVAL, DVAL, FVAL).
 Supports pixel frequency from 20 to 85 MHz.
 Maximum transmission distance: 2000 [m].
 Enables lossless transmission.
 Supports all external full-duplex RS232 communication speeds on a single port.
 Features a locking DC power jack (Molex).

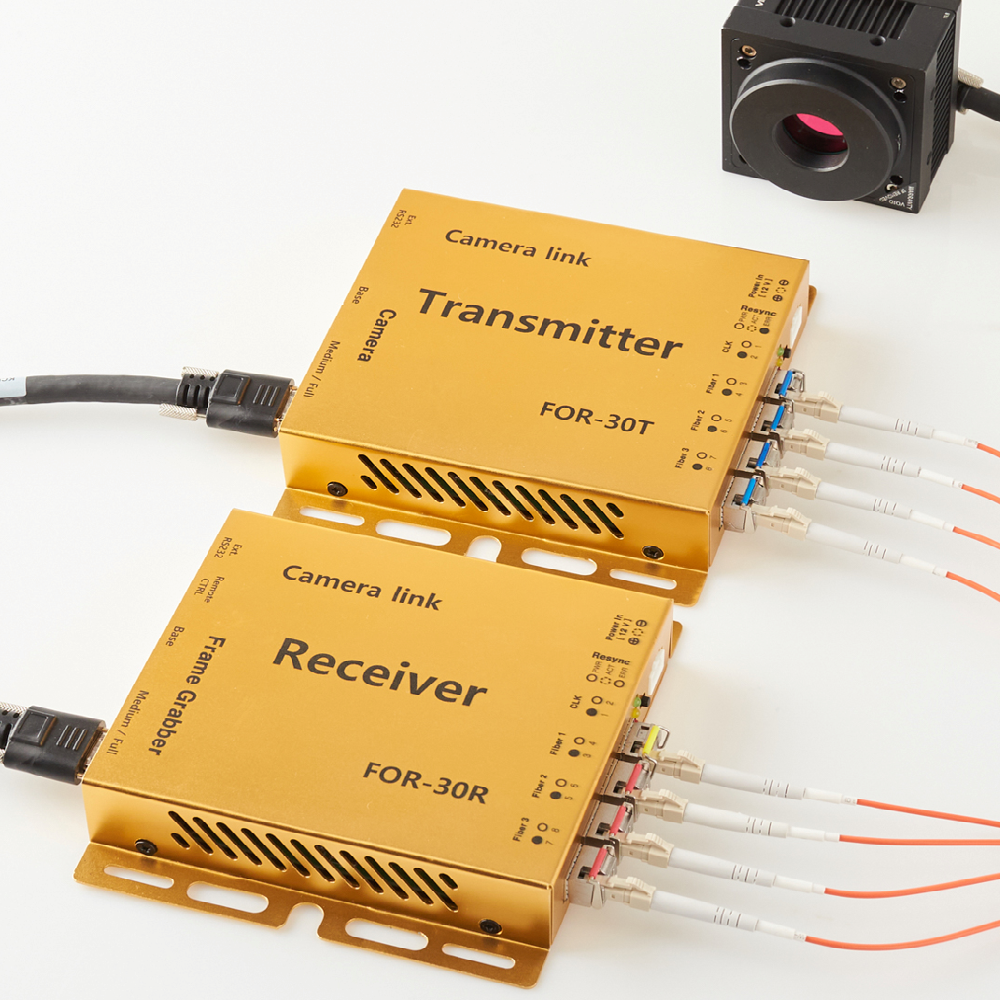

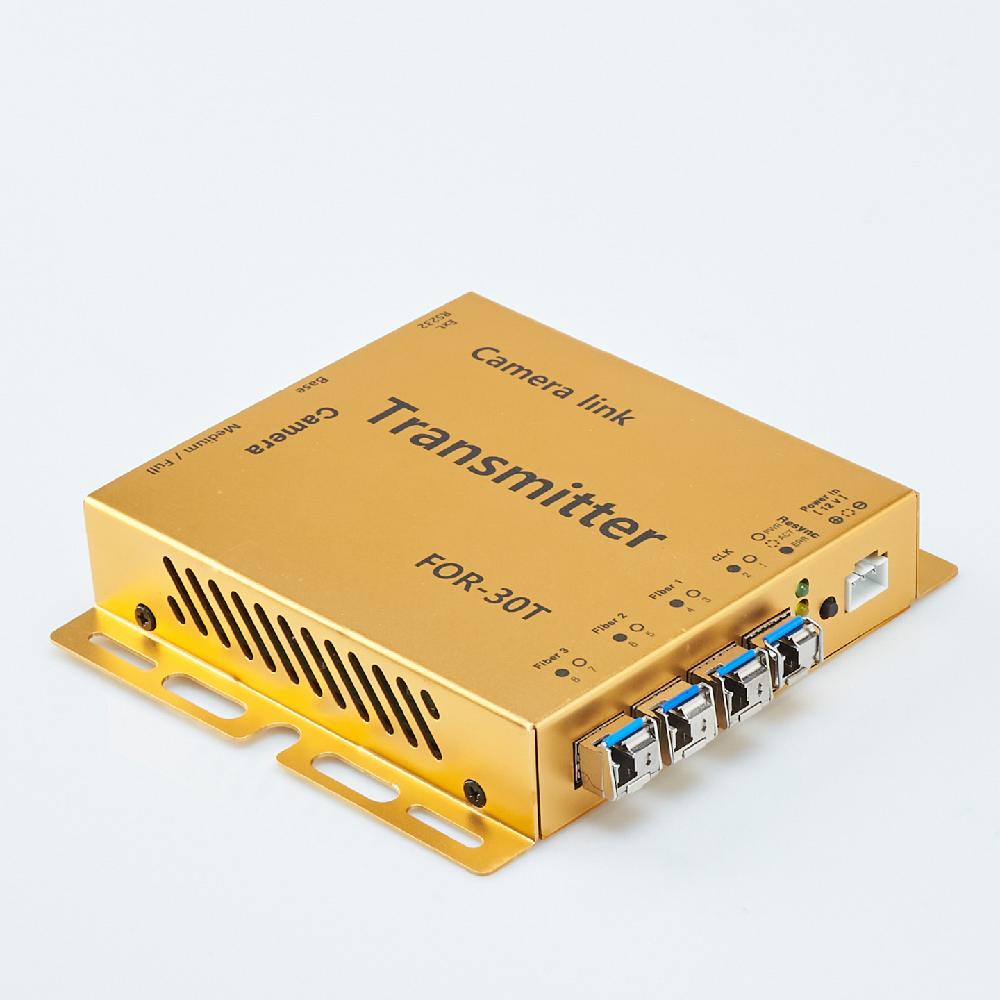

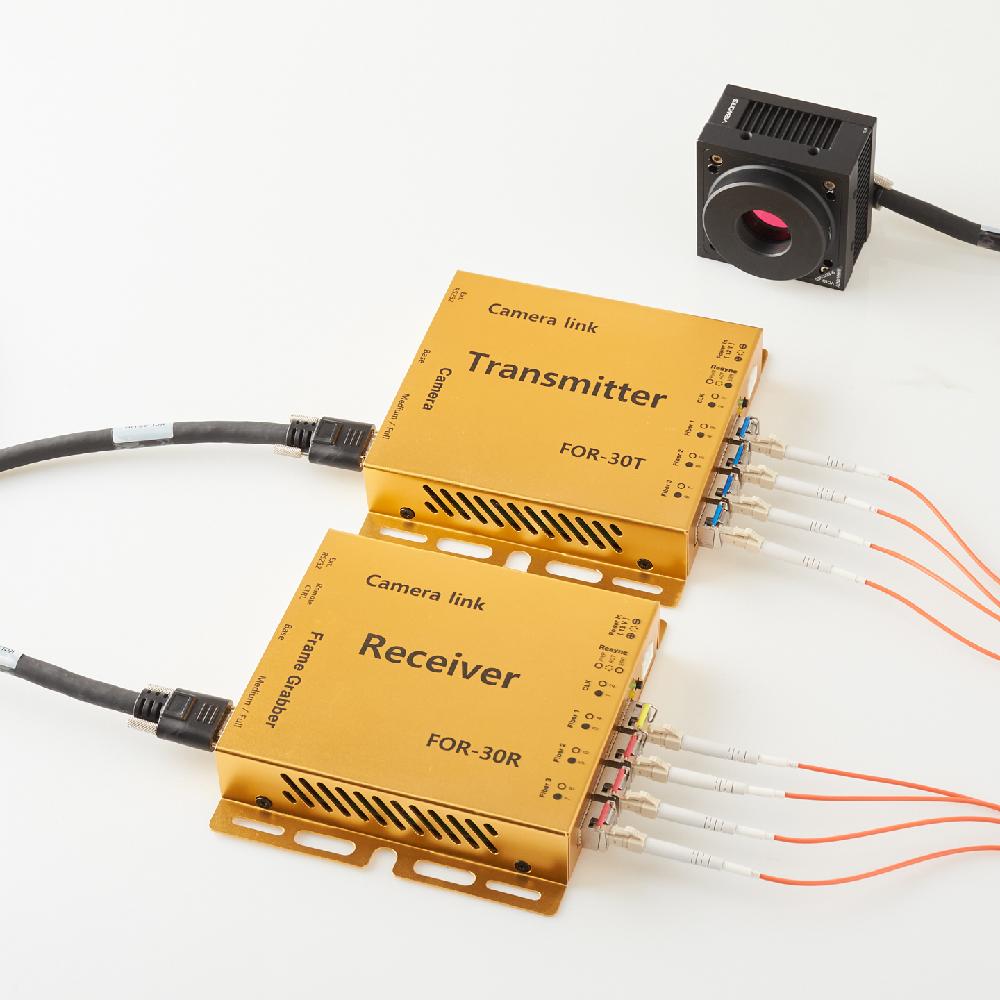

* FOR-30T receives, converts and sends out video data to fiber from the camera while FOR-30R receives the optical signals,converts them back into video data and sends to the x-frame grabber.
•  Perfect automatic camera matching for all kinds of vision cameras.
•  User-friendly, No need to reconstruct firmware by frequency
•  Support All Frqequency, Real Time, Frame Lossless
•  Support “10 TAPS @85MHz”, Internal/External RS232C,
•  All Baud Rate , 20MHz~85MHz, Digital User IO
•  Support All Area Scan / Line Scan Camera
•  Support Base / Medium / Full Config.
•  SFP type module
•  Support Camera Power from Tx Box
•  Moving or Non-Moving Fiber Cable
