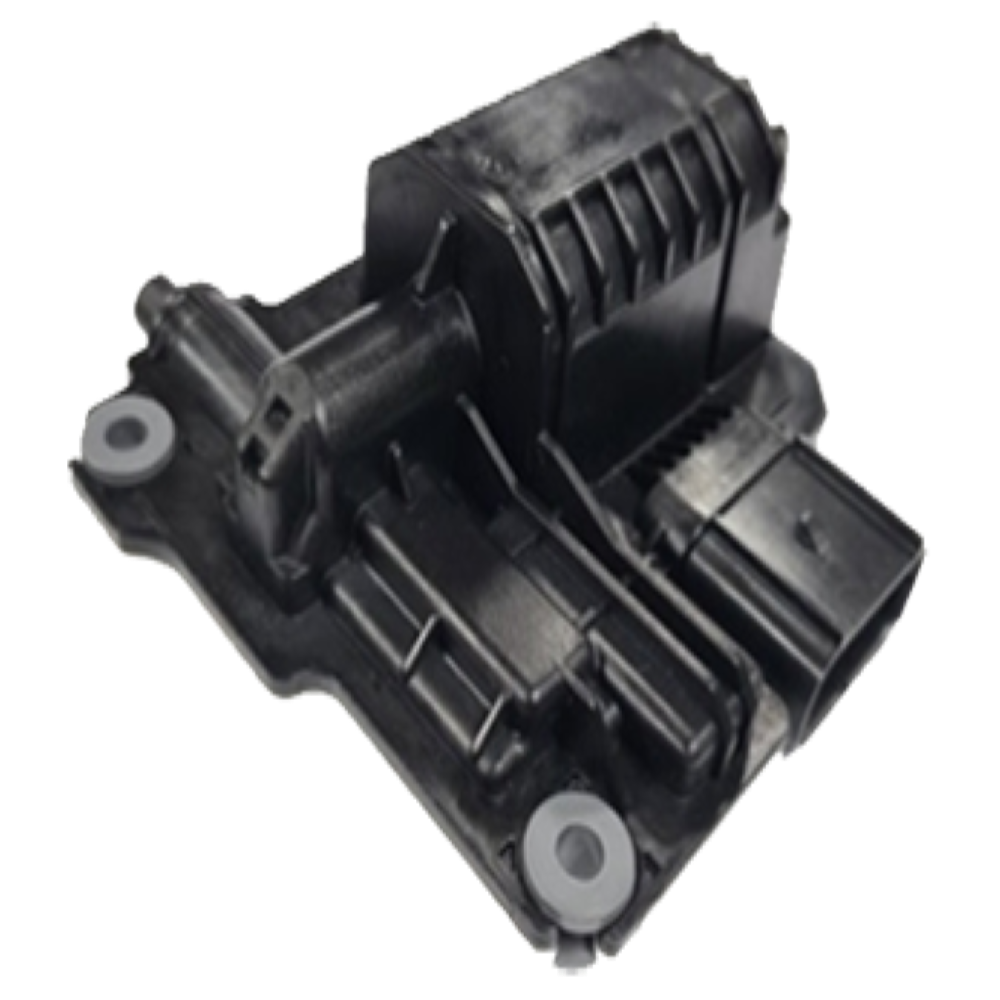

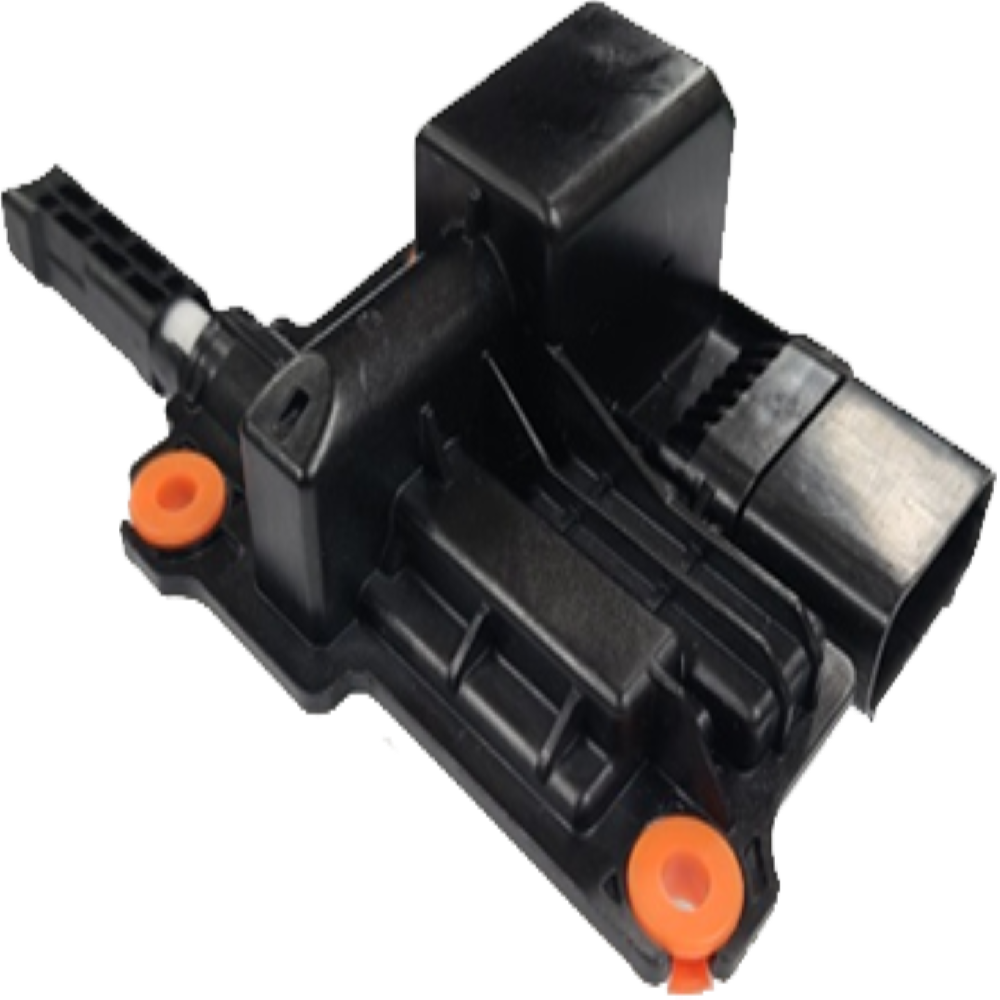

Autoflush Door Actuator
Operate auto pop up, and swing to deploy the auto flush door outside handle
INTRODUCTION
When the passenger approaches the vehicle, the concealed handle is deployed horizontally. The part actuates the handle module.
FEATURES
Adjusting AFD actuator to control autoflush door handle with less noise, slim and light, and simplified process with easy mounting Increased durability
- High operating force for ice-breaking performance
- Noise reduction components applied for premium quality and minimized noise
- Simultaneous irradiation laser welding of housing joints
- Switch contact structure for position feedback
SPEC
Environmental Conditions
Operating Temperature [℃]: -40℃ ~ 85℃
Operating Voltage [Vdc]: 9.0 ~ 16.0
Rated Voltage [Vdc]: 13.5
Performance Conditions
Operating Time [sec]: 0.55 ± 0.2 sec
Operating Stroke [mm]: 18.7 ± 1
Max. Operating Force [N]: Min. 600N
Operating Noise [dB(A)]: Max. 48dB(A) @ 600mm (Peak)
Component
Functional Conditions
External Dimensions (W×L×H) [mm]: 99.1 × 93.7 × 48.7
Motor Type: DC
Connector: 5-pin connector
Position Sensing: Switch method
