Frameless Servo Motor
-
Payment
T/T
-
MOQ
1 Unit
-
Supply Ability
9,999,999 Unit per One-Time
-
Supply Details
Customization Sample Order
Minimum Order Quantity / No condition, Maximum Order Quantity / Negotiable
-
Country of sale
Americas, Europe, Asia, World Wide, Middle East
-
PRICE
-
FOB
Depend on quantity
-
ITEM SPECIFICS
-
Brand
Model KHND-05009-TAN(Example)KOMOTEK(Brand Labelling is acceptable)
-
origin
Republic of Korea
-
Size(Capacity)
Please refer to Catalog for detailed Mechanical and Electric Specs. Customized Product is available
-
Dimensions
Customized Product is available
-
Weight
Customized Product is available
-
Features
Mobile Robots(Collaborative Robot, Quadruped Robot and AMR)
PRODUCT DESCRIPTION

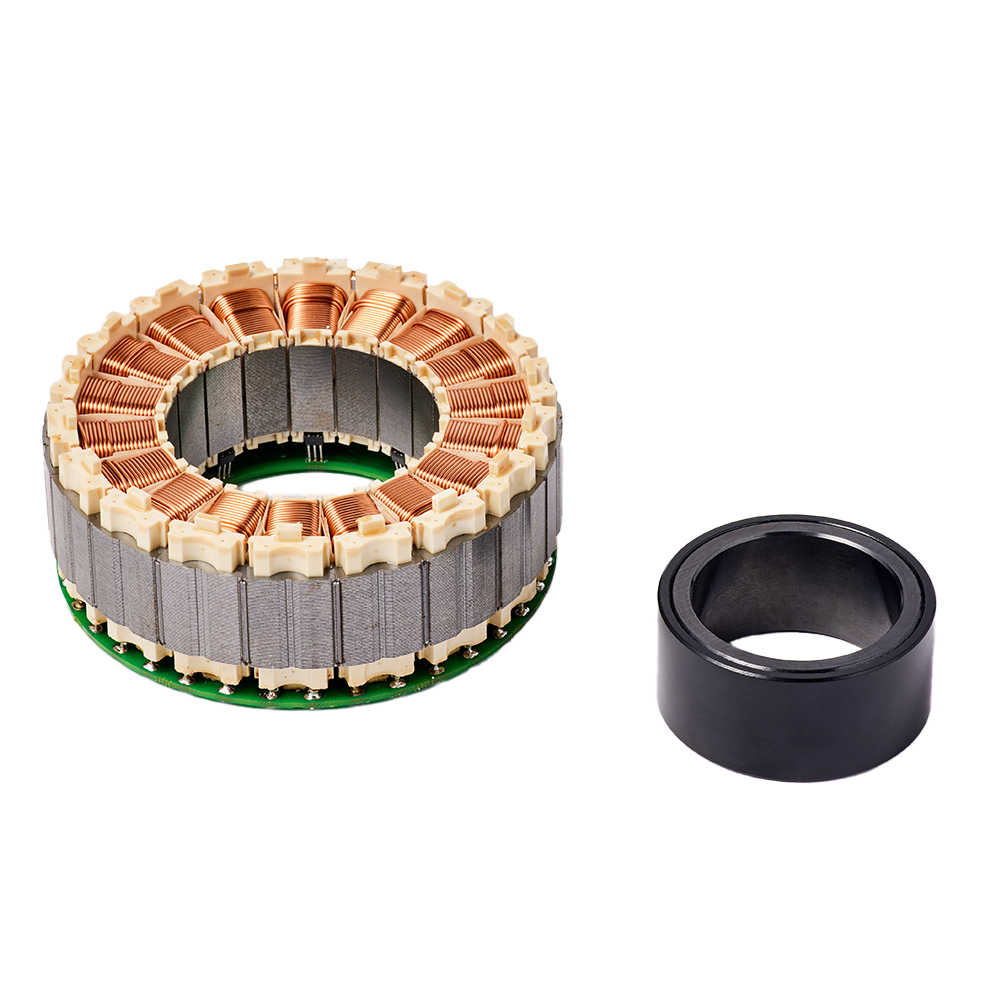

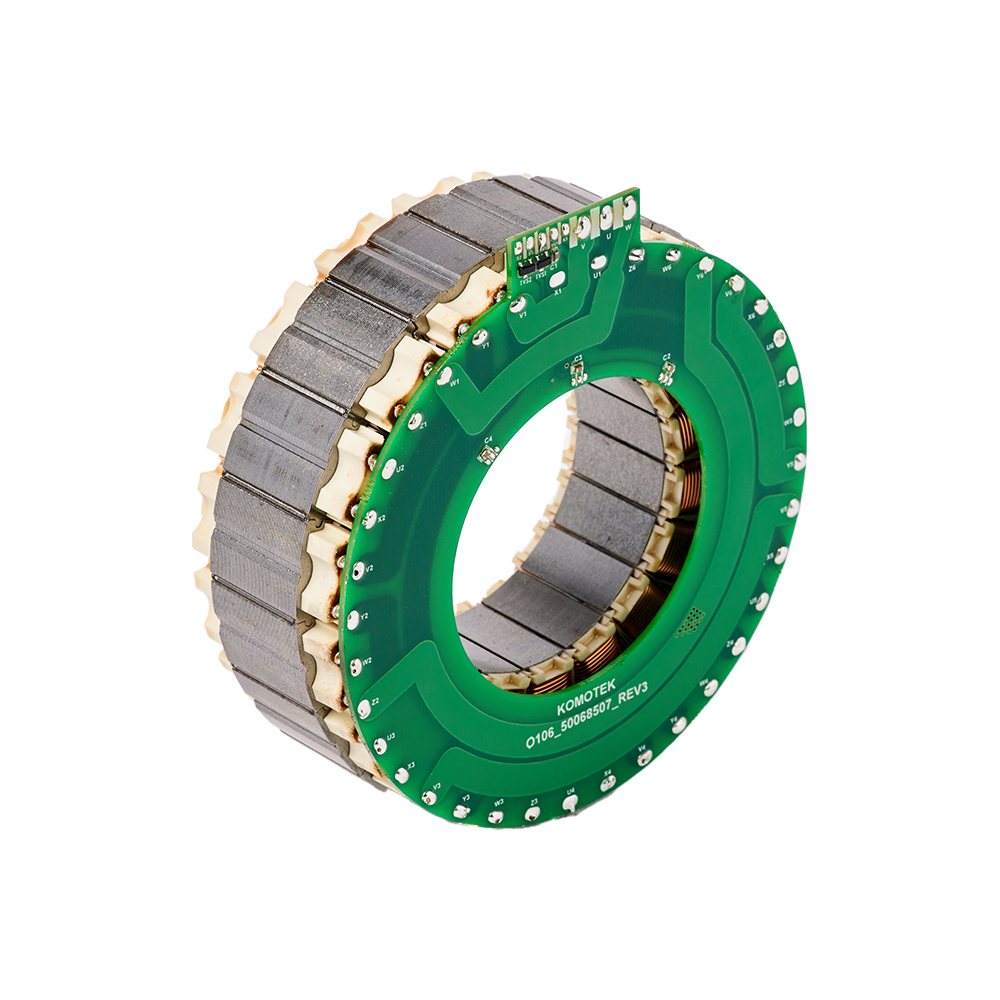

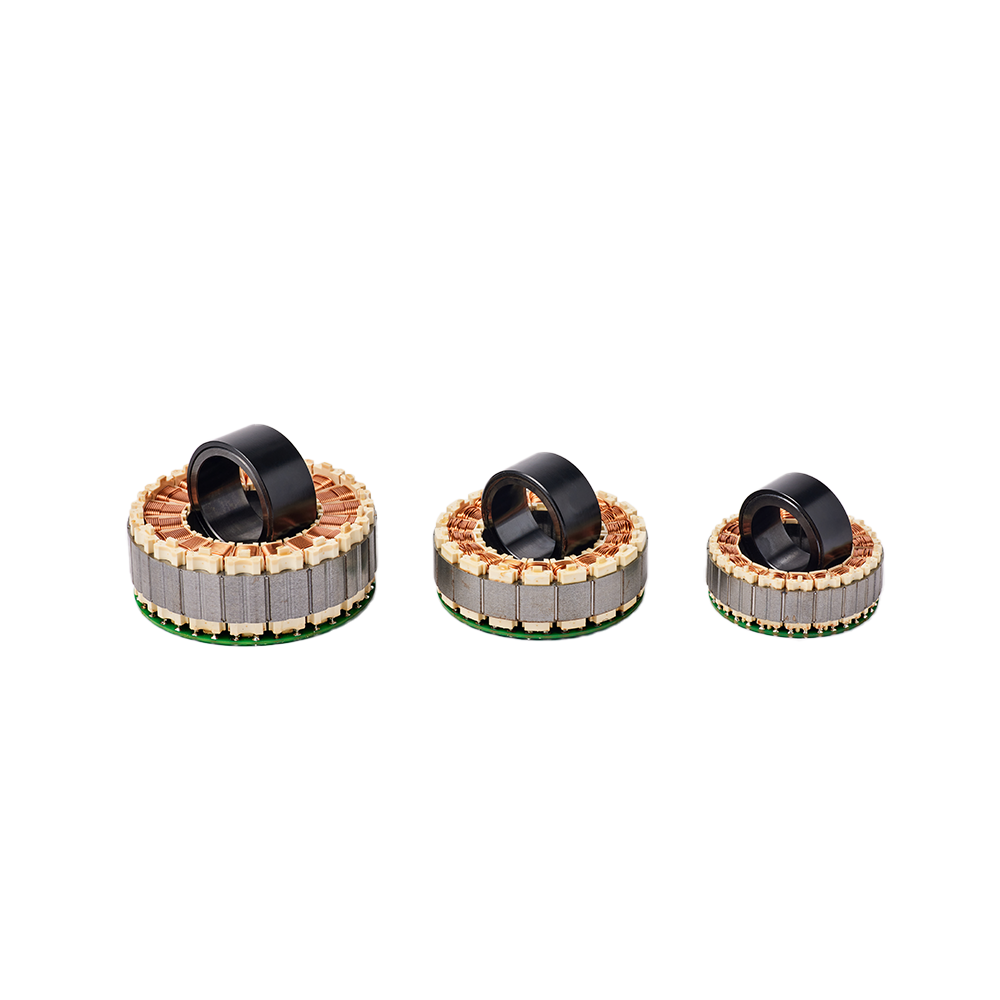

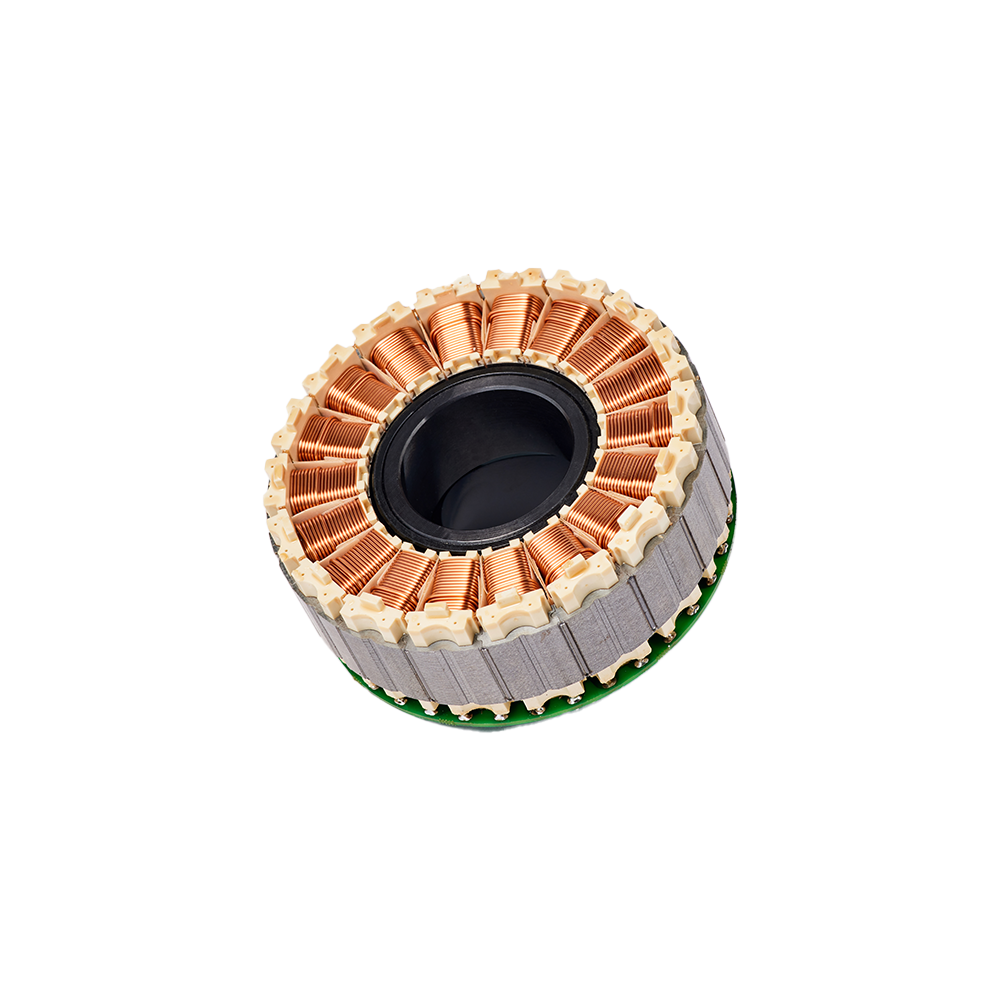

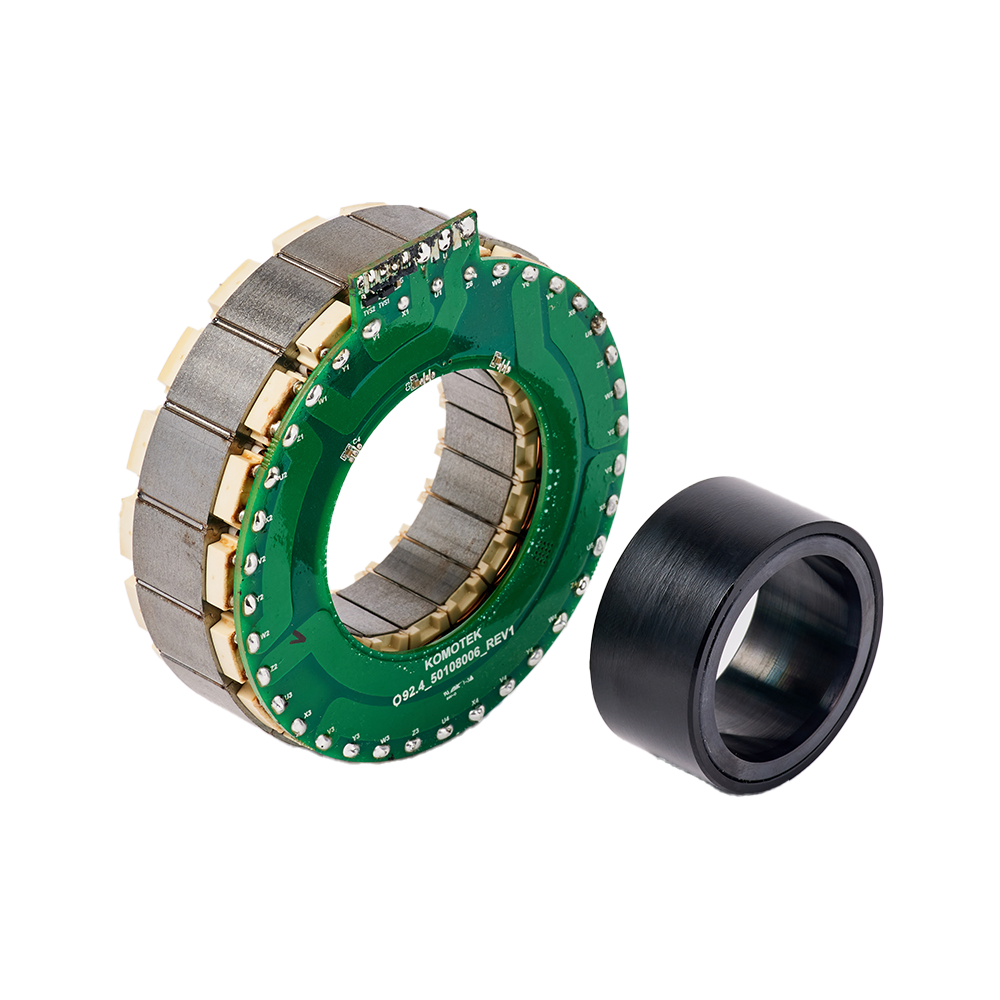

Frameless Hollow shaft Motor / Permanent Magnet Synchronous Motor
Origin
Korea ; Design, Manufacturing
Key Features
1. Frameless construction for high design flexibility of Customer's Applications
2. Lightweight and compact
3. Spacious hollow shaft for additional function
4. Excellent dynamic control and precision motion
5. Customized Design based on User Requirements
6. Low Voltage, Hollow Shaft, Compact Type
7. Minimized heat generation
8. Applications : Collaborative robots, AGV, AMR, Quadruped walking robots, Service robot, etc.
2. Lightweight and compact
3. Spacious hollow shaft for additional function
4. Excellent dynamic control and precision motion
5. Customized Design based on User Requirements
6. Low Voltage, Hollow Shaft, Compact Type
7. Minimized heat generation
8. Applications : Collaborative robots, AGV, AMR, Quadruped walking robots, Service robot, etc.
Order Options
| Type | Frameless, Frame |
| Supply Voltage | 48Vdc, 24Vdc, 12Vdc, 220Vac, 440Vac |
| Outer Diameter [mm] | 50, 61, 75, 88, 106, 116, 150 |
| Stack Length [mm] | 9.4, 9.8, 10.5, 12, 15.2, 18.4, 24.6, 28, 36.5 |
| Sensor Options | No Hall sensor, Hall sensor |
| Connection | No leads, 0.5m length |
| Shaft Option | Ring Shaft (Standard) |
Model example
| Model No. | KHND-05009 |
| Rated output [W] | 126 |
| Supply Voltage [Vdc] | 48 |
| Outer Diameter [mm] | 50 |
| Length [mm] | 17 |
| Rated speed [rpm] | 3000 |
| Rated torque [N.m] | 0.4 |
| Max torque [N.m] | 0.83 |
| Model No. | KHND-06013 |
| Rated output [W] | 173 |
| Supply Voltage [Vdc] | 48 |
| Outer Diameter [mm] | 61 |
| Length [mm] | 26 |
| Rated speed [rpm] | 3000 |
| Rated torque [N.m] | 0.55 |
| Max torque [N.m] | 0.93 |
