PRODUCT DESCRIPTION
Introduction

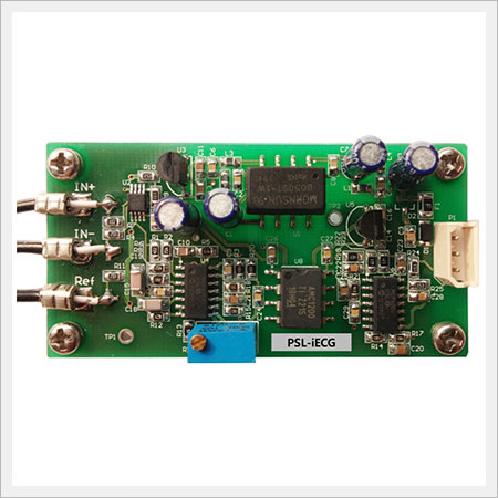

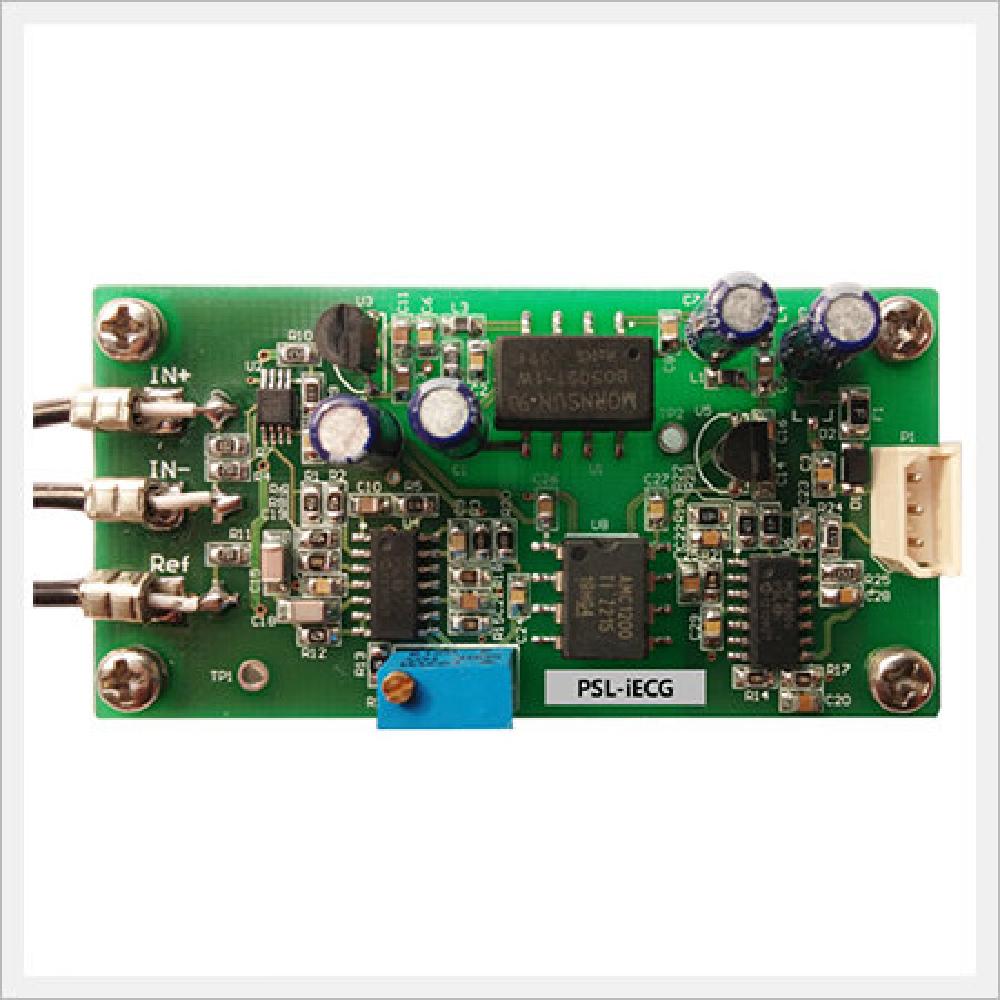

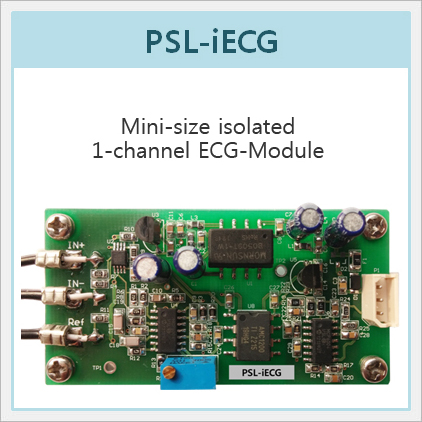

PSL-iECG is a 1-channel ECG analog amplifier module, and uses DC5V (4.5V ~ 5.5V) for convenient power input. Internal amplification is designed to be 500V / V and its low-noise optimal filter circuit design enables a user to measure a good quality of the ECG signal.
The output ranges from 0 to 3.3V, and despite its low price, its built-in isolated signal and power supply circuit which make it possible to go without additional circuit for electrical safety and enables a user to utilize the device as an ECG(electrocardiogram) measurement module.
Main Features
- 1-channel ECG analog amplifier module
- Isolation signal and power circuit ensure electrical safety
- Notch Filter is 50Hz or 60Hz and fine-tuning is possible.
- HPF & LPF designed considering the ECG signal

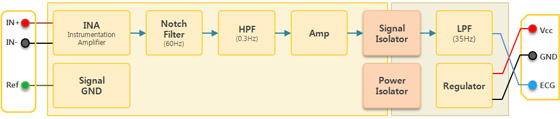

Block Diagram
Specifications
|
Item
|
Spec.
|
|
|
Function
|
ECG measurements, Isolation signal and power | |
|
Voltage input range
|
DC 4.5V~5.5V | |
|
Electric current consmption
|
30mA | |
|
Amplification
|
500(±2% or less) | |
|
Filter set
|
Notch
|
50Hz or 60Hz |
|
HPF
|
0.3Hz | |
|
LPF
|
35Hz | |
|
Output Range
|
0 ~ 3.3V (center 1.65V) | |
|
Insulation Withstand Voltage
|
1kV | |
|
Size
|
68mm x 35mm | |
|
CMRR
|
60dB | |
|
Contents
|
* PSL-iECG 1EA * Lead Cable 1EA * Output Cable 1EA * Electrode 1Pack (6ea) * Manual 1EA |
|

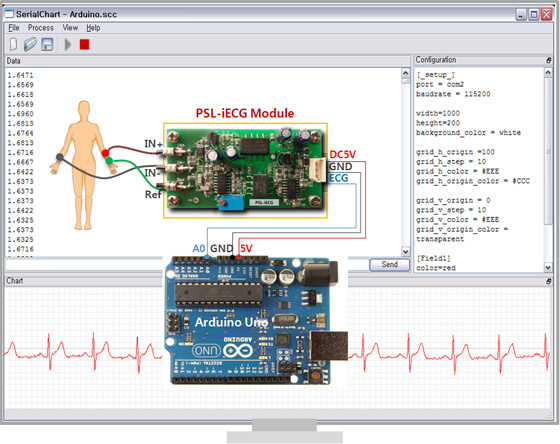

Application
