Monoplace Hyperbaric Oxygen Chamber

Payment

CAD , COD , D/A , D/D , D/P , Factoring , Forfaiting , GN , Inkasso , L/C(sight) , L/C(usance) , LH , M/T , O/A , OT , PT , T/T , UNESCO coupon payment , WK , WU
MOQ

1 ea
Supply Ability

0 ea per Month
Supply Details

Customization

No maximum supply limit
Country of sale

Asia, Americas, Europe, Middle East, Africa
Catalogue Etc attached
PRICE
- EXW

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

IBEX MEDICAL SYSTEMS

Model IBEX M2
origin

Republic of Korea
Size(Capacity)

2,400 * 1,490 (mm)
Color

Ivory
Weight

800kg
Features

Can pressure up to 3 ATA. Provided optional A.B.T. RIDE® Technology
Function

Medical device that improves diseases caused by lack of oxygen through a high purity oxygen supply
Material

Transparent Acrylic
Gender

For all

PRODUCT DESCRIPTION

Hyperbaric Oxygen Therapy (HBOT) is a medical treatment which enhances the body's natural healing process by inhalation of 100% oxygen in a total body chamber, where atmospheric pressure is increased and controlled. With this, Ibex Medical Systems Co., Ltd. has designed and developed the IBEX Monoplace Hyperbaric Chamber to obtain the hyperbaric oxygen therapy safely and effectively for patients.

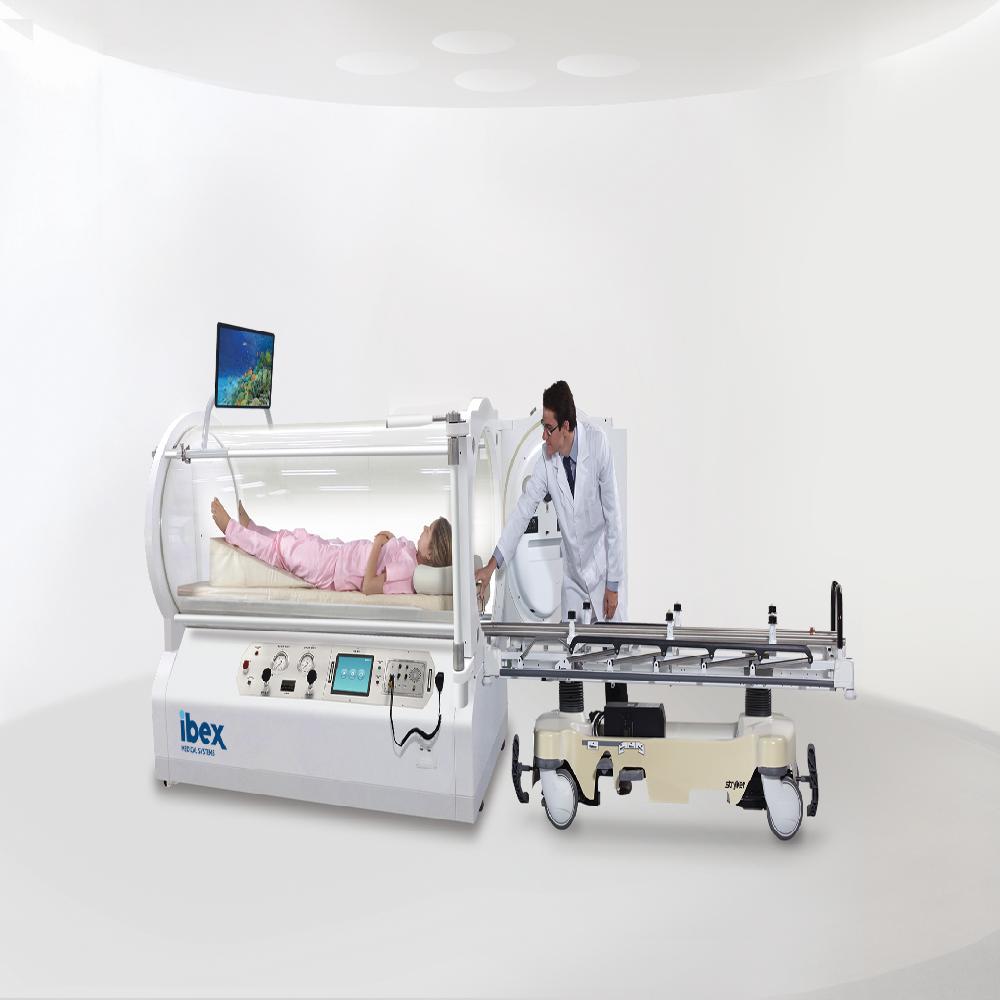

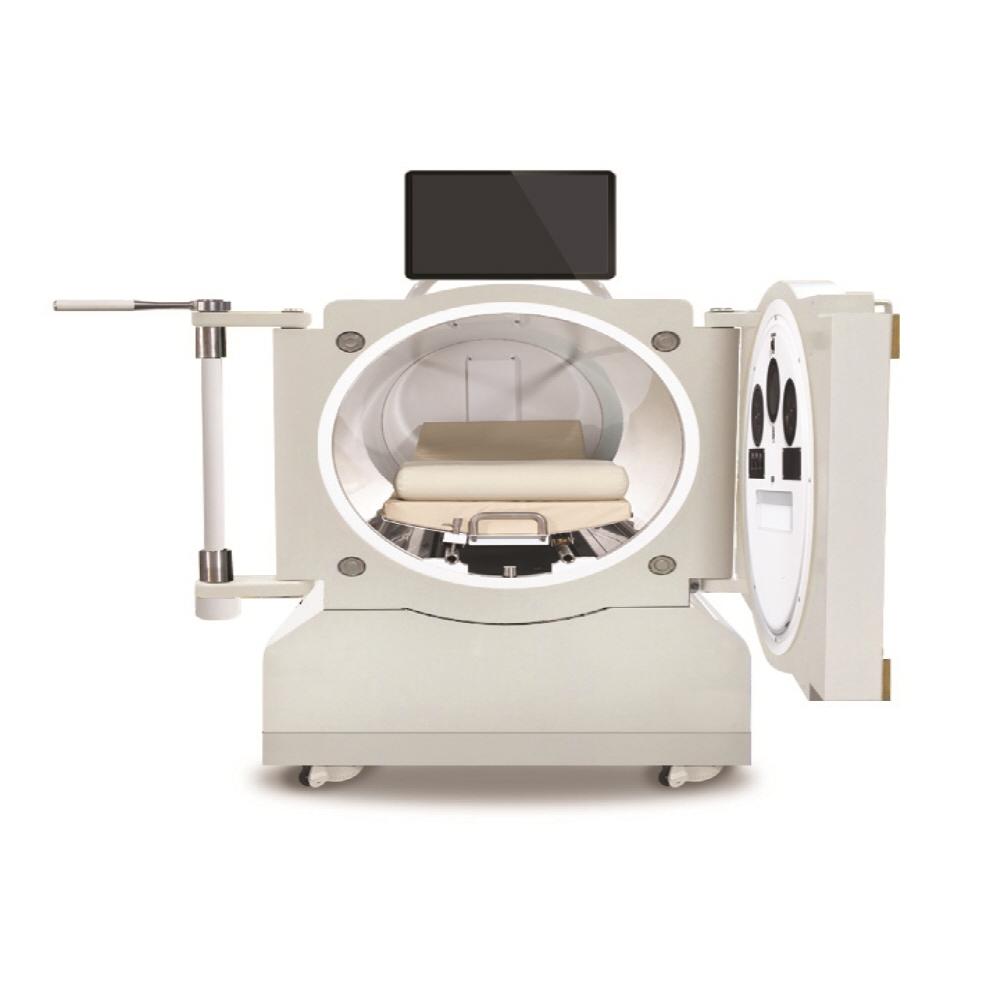

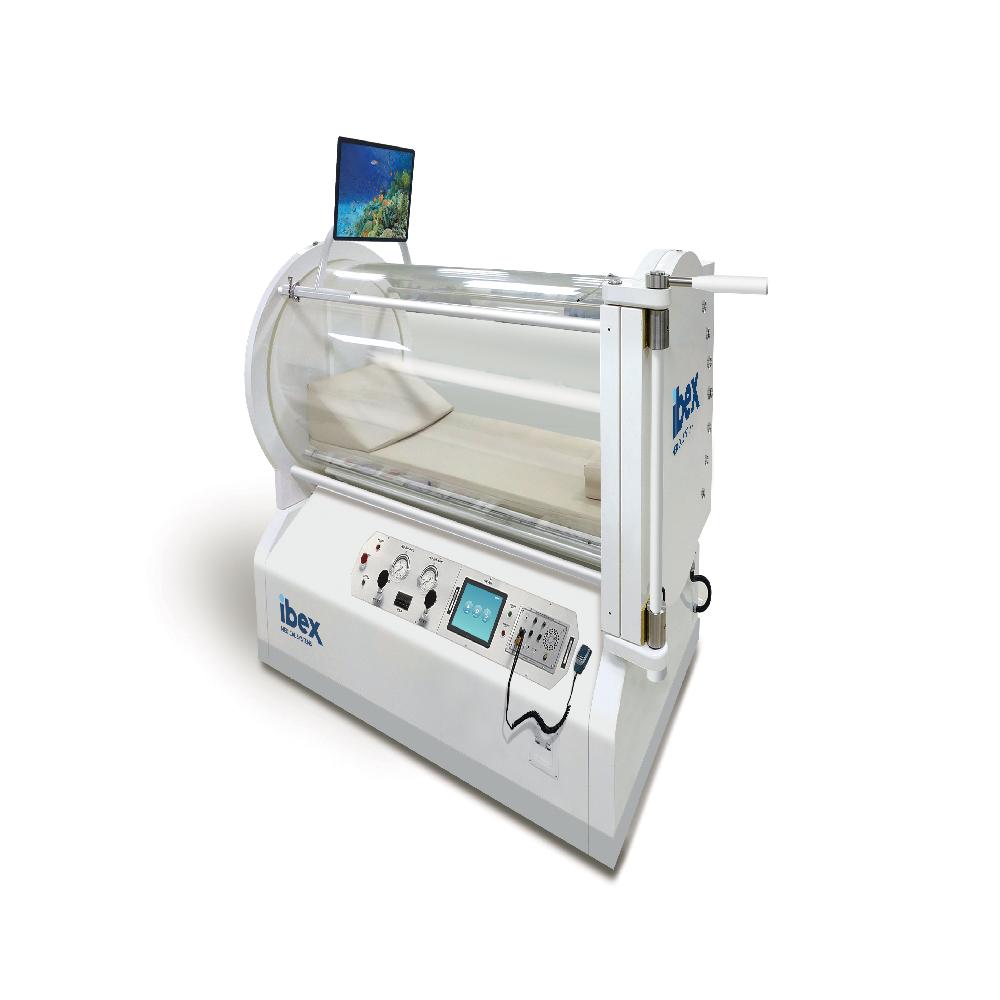

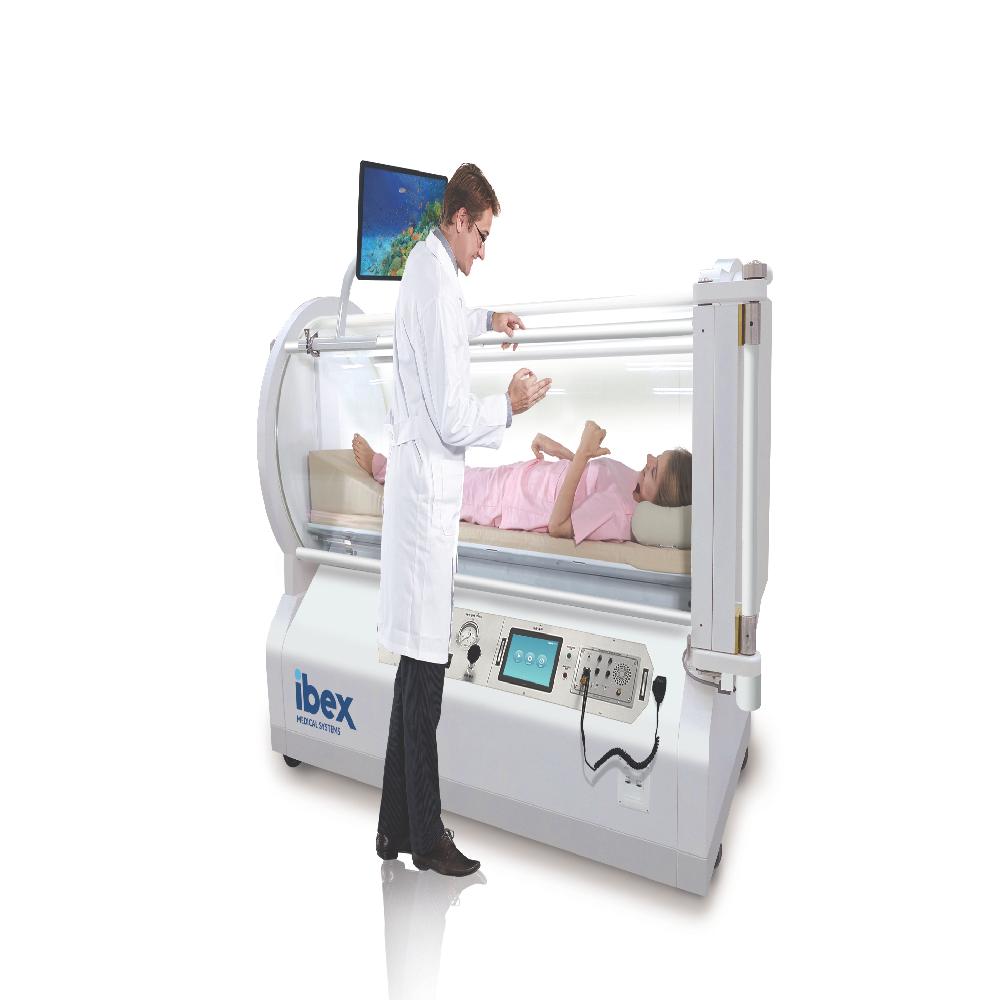

The model that is introduced by IBEX MEDICAL SYSTEMS is a Monoplace Hyperbaric Oxygen Chamber designed for use in clinical environments requiring critical care support.
The body of the chamber is fabricated of polished acrylic that meets the ASME PVHO-1.
All of retaining parts are constructed of the American Society of Mechanical Engineer (ASME) approved metals. The auto control system provides convenience to operators.
With a maximum pressure of 3.0 ATA, the model is capable of operating through the full range of pressurizations required by currently accepted clinical protocols.

Standard Features of Ibex Monoplace Chamber:
· The optional hard copy record of treatment
· 317.5 kg capacity
· Two-way communication
· Optional Video Entertainment system
· ASME PVHO-1, NFPA99 Chapter 14 complied
- Patient call button\
- auxilliary audio input
- Occupancy: 1 person
- Pressure: Up to 3 ATA
- Transparent Acrylic Chamber
- Automatic control
· Optional A.B.T. RIDE® Technology (*A.B.T. = Anti barotrauma)

*The A.B.T. RIDE Technology is the technology applied to reduce the barotrauma and provide improved comfort for the patients.

Measurements:
- Length: 2.4M
- Height: 1.5M
- Inner Diameter: 0.76M

R&D CERTIFICATE

Certificate of Manufacture of Medical Devices

KFDA

2018.07.19

인증서보기

PAYMENTS DETAILS

This supplier supports payments for offline orders

Letter of Credit : L/C(sight)

West Union : WU

Open Account : O/A

Demand Draft : D/D

Mail Transfer : M/T

Letter of Credit : L/C(usance)

Document against Payment : D/P

Document against Acceptance : D/A

Factoring

Forfaiting

Inkasso

UNESCO coupon payment

Cash Against Document : CAD

Cash On Delivery : COD

Telegraphic Transfer : T/T

Contact Payment Manager

Name : DAHEE KIM

SHIPPING

Shipping from : Republic of Korea

200 Gieopdosi-ro Jijeong-myeon, Wonju-si, Gangwon-do (26354)

IBEX MEDICAL SYSTEMS Co., Ltd.

www.ibex.co.kr

The person in charge
SUCHO YOON
Address
200 Gieopdosi-ro Jijeong-myeon, Wonju-si, Gangwon-do (26354)

Introduction

“IBEX Medical Systems” is specialized in the design and manufacture of hyperbaric oxygen treatment systems. We have gained our experience in our own oxygen therapy centres as well as through our cooperation with university institutions and hospitals specializing in HBO therapy. In our process of creation we have gotten support from authorities in the field of medicine and technology, whose guidelines and recommendations we have been drawing on. We comply strictly with any safety standards.

Business Type :

Manufacturer
Main Product :

Monoplace Chamber Model IBEX M2, Multiplace Chamber Model IBEX, Portable Chamber
Established :

2011-12-12
Total Annual Revenue :

5~6 billion (KRW)
Total Employees :

11~50 people
