(Low Vacuum Controller / Unit : Torr - mTorr Automatic Switching)

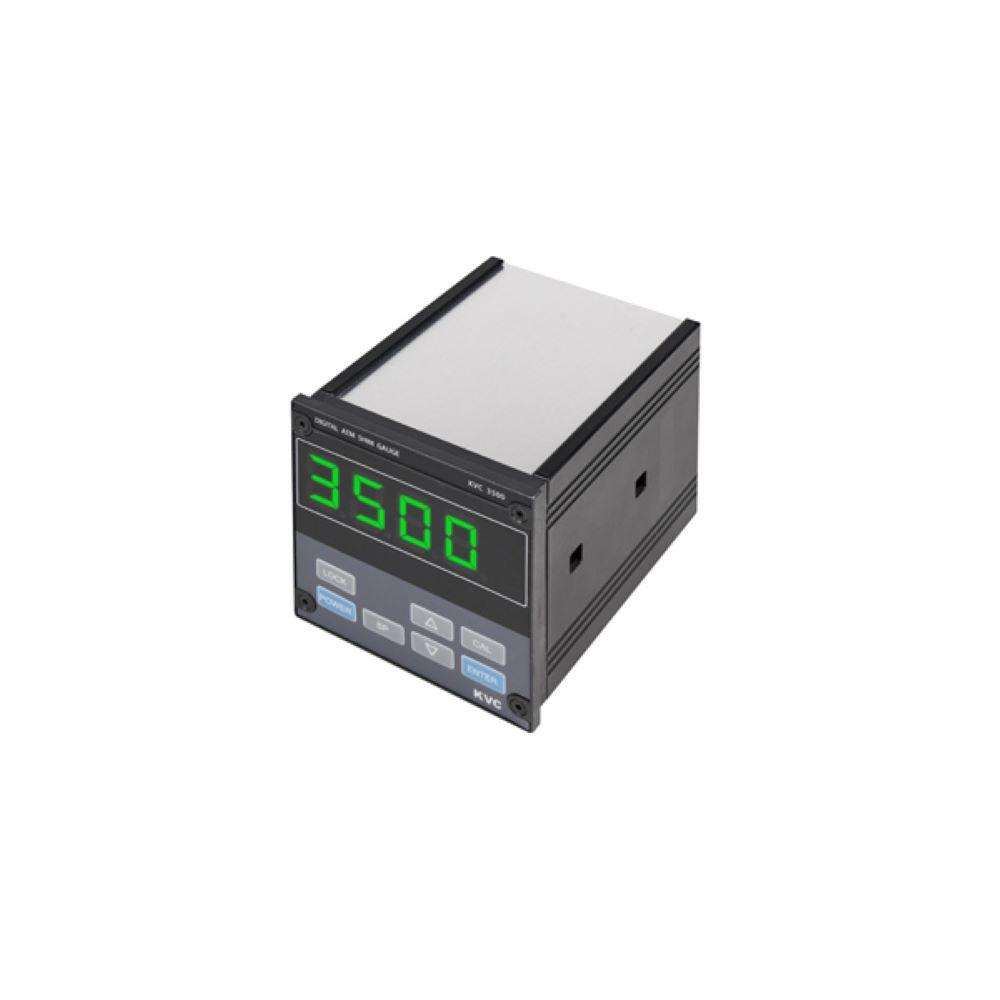

KVC3500N is controls various vacuum systems and pressures by measuring the vacuum
according to the user's application and utilizing the output.
( Unit values are automatic change according to the vacuum value. ( Torr or mTorr ))
Key Feature
- KVC3500N vacuum gauge controller is a pannel mounting type in DIN specification (96mm x 96mm) size.
- Key operation is easy, so it is convenient to set it up.
- High luminance chip LED module used for easy management as the display is large and clear.
- Compact design and accuracy. stability. reliability. reproducibility. durability will help
with company quality and productivity.
- Made of all-metal, there is no problem with RF interference.
- CE-certified product
- Sensor Fitting Size : 1/8NPT, 15mmO.D, NW16KF, NW25KF, 1/4VCR, 1.33CF, 2.75CF, 1/2VCR.
KVC3500N Specification
Controller Specification
Measuring Range for Air and N2 |
1.0E-3 ~ 1500 Torr
|
Operating Temperature | 0 ~ 60 ℃ |
Storage Temperature | - 40 ~ 70 ℃ |
Case Material | Aluminum |
Display | 4 Digit LED, Stuats LED |
Set Point Relays | 2 PointSPST ( 1A / 24VDC, 5A / 250VAC) |
Analog Output |
Log Scale ( -3 ~ 3Vdc )
Adjustable Bias Voltage
|
Digital Interface | RS232/485 ASCII, RS232/485 MODBUS |
Power Required | AC85 ~ 265V / 20VA 50 ~ 60 Hz |
Weight | 630 g |

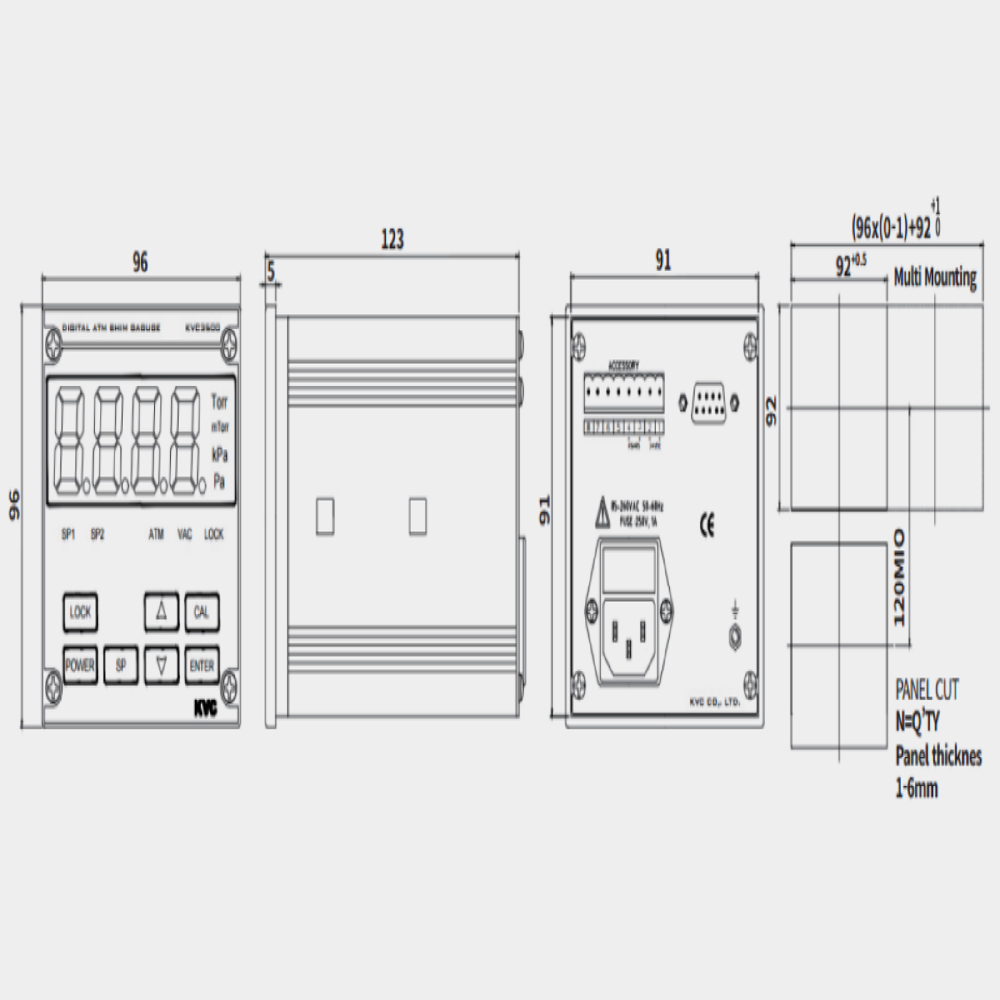

Mounting | Pannel Mounting ( DIN 96 X 96 mm ) |
Sensor Type |
ATM SHIM Gauge ( KVC500 - XX )
|
Sensor Materials |
Gold plated tungsten or platinum
Piezoresistive Silicon Sensor with SUS housing
|
Internal Volumn | 30cm³ |
Gauge Bakeout Temperature | 150 ℃ Maximum, NON - operating |
Case Materials | 304 Stainless steel, borosilicate glass, Kovar |
