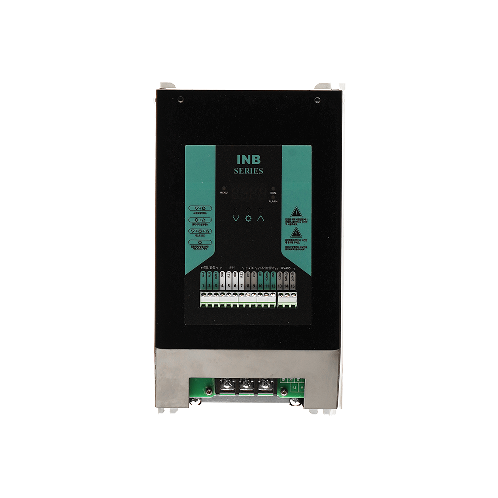

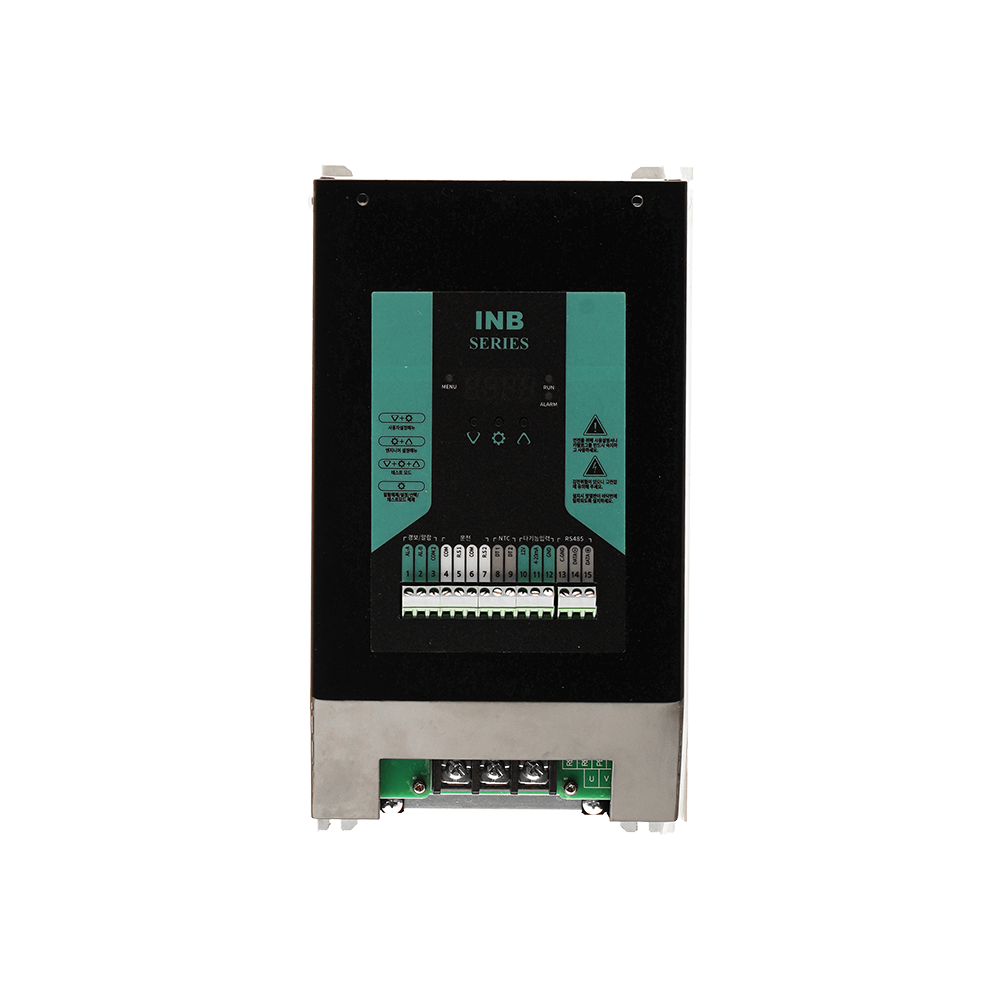

Inverter Compressor Drive INB35-SC
Package Type, Power 3P 380~480VAC,Rated Capacity 7.5KW
Inverter for DC/AC compressor control
On/Off operation, frequency control, input current input
BAND control, PID control, high pressure, condenser temperature overheating
Alarm Output – Operation error, over voltage, under voltage, over current, overheating, sensor failure
Compressor Speed Control
Fan Speed Control
3P 380V 440V Inverter
CompressorInverter
Fan Inverter
HVAC Inverter, Air conditioner Inverte
Overview and Features
1. Frequency and Voltage Variable Function
· Accepts 3-phase AC power at 50Hz or 60Hz and varies frequency from 0 to 400Hz
· Supports 3-phase AC power and adjusts voltage up to the Up toimum AC voltage
· Fully performs the fundamental functions of VVVF (Variable Voltage Variable Frequency)
2. Convenient User Operation
· Simple operation using a 4-20mA command signal and dry contact for start/stop
· Easy access via industrial-standard MODBUS-485 communication
3. HVAC System Compatibility
· Optimized default settings for HVAC applications, enabling immediate use without additional configuration
4. High Power Efficiency
· Achieves higher power efficiency compared to conventional constant-speed operation
· Integrates with PMSM and ACIM compressors and fans in HVAC systems, including air conditioning units, chillers, and constant temperature/humidity machines
· Supports variable system implementation with the INB series to achieve high SEER (Seasonal Energy Efficiency Ratio)
5. Enhanced Protection Features
· Continuously monitors current, voltage, and temperature to safeguard the system
· Ensures stable operation through multi-x-layer current and voltage protection
· Provides predictive protective control, adjusting for environmental variations in current and temperature
6. Adaptive Protection Function
· Includes adaptive protection mechanisms to maintain inverter functionality without system shutdown
· Operates at optimal speeds to prevent shutdowns due to rising ambient temperatures
· Detects performance fluctuations in compressors and fans to adjust speed accordingly
7. Optimized Sensorless Operation
· Implements advanced sensorless control for stable low-speed operation
· Accurately detects mechanical speed without requiring an encoder
· Precisely controls fan and compressor speeds without the need for additional sensors
Specifications
Product Name |
Inverter Compressor Drive |
Brand Name |
Seungil Electronics |
Model No. |
INB35-SC |
Size |
7.5kW |
Origin |
Republic of Korea |
